CCTV Van

Images may take a few seconds to load

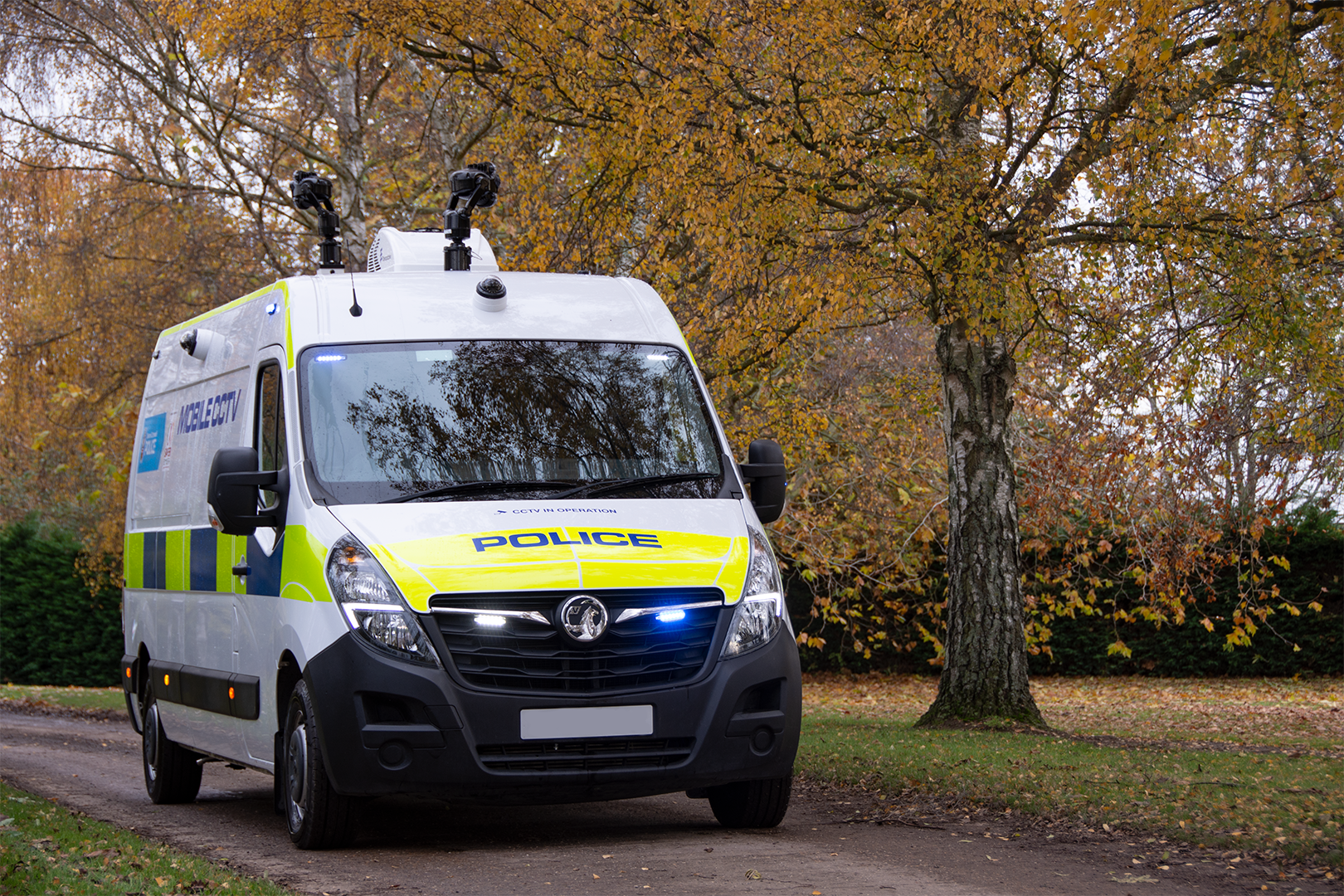

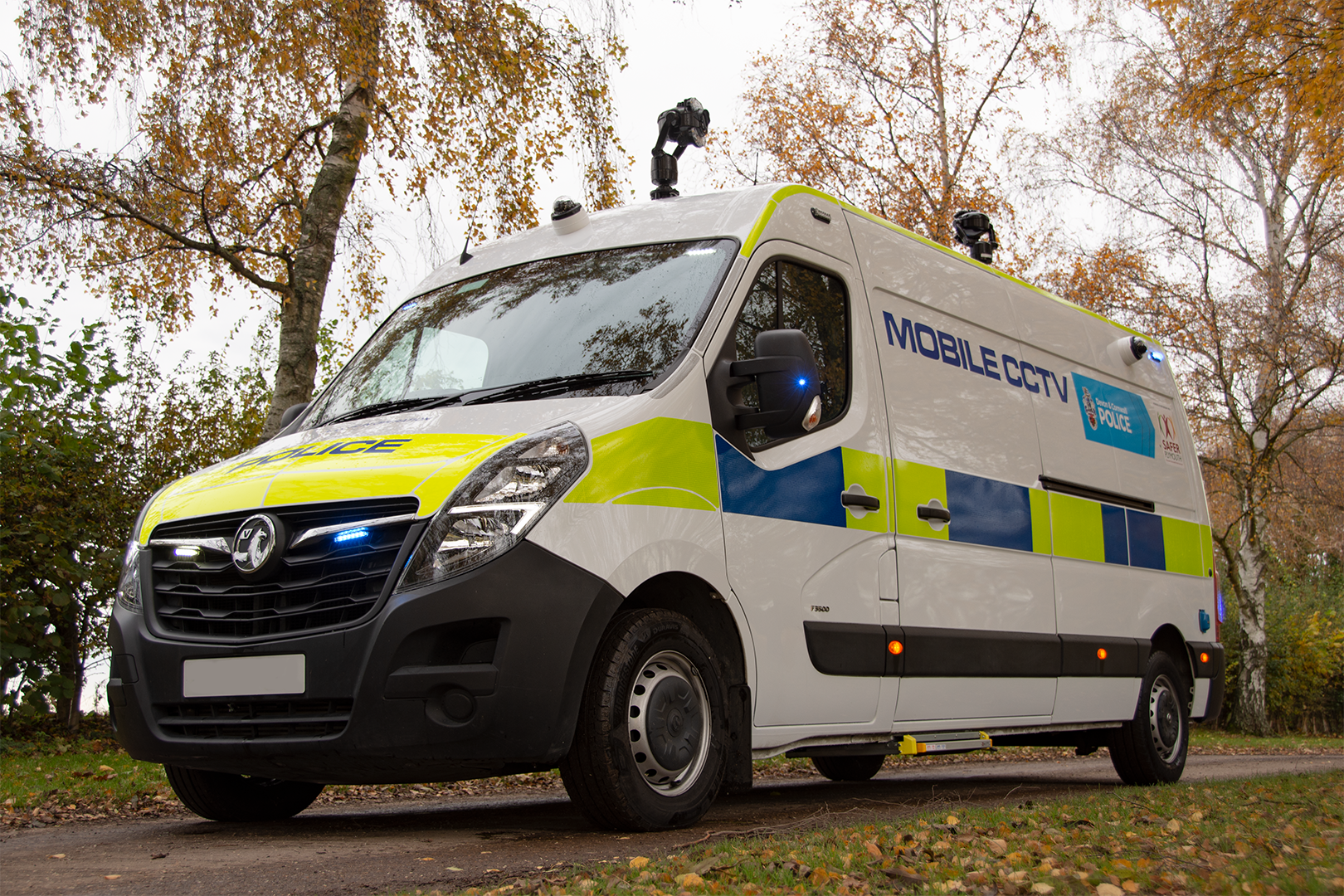

We are very happy to be able to share this project with you, this is a CCTV van we have built for Devon & Cornwall Police as part of their Safer Streets initiative.

The main role of this vehicle is to be a high visibility deterance of violence against women and girls and persistent anti-social behaviour in the City of Plymouth.

We have thoroughly enjoyed this project and would like to once again thank Devon & Cornwall Police for their amazing collaborative support throughout.

A full list of the vehicle spec can be seen below.

We love taking on these projects, so if you think what you see could suit your force, then please don’t hesitate to get in touch with us at enquiries@richellvehicleconversions.co.uk

Vehicle Spec

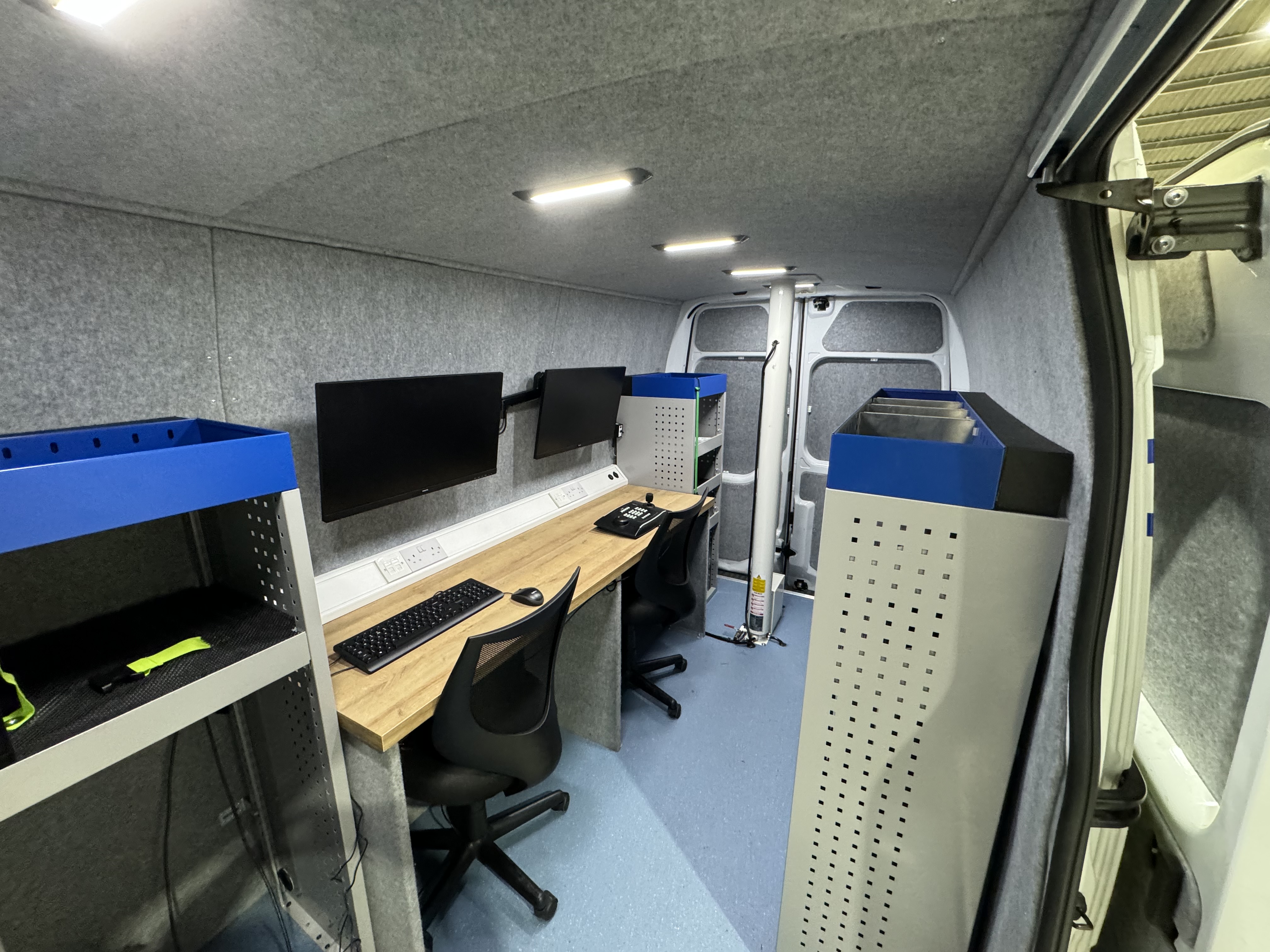

  • Interior fully lined, carpeted, and insulated for temperature control & sound deadening
  • Altro flooring

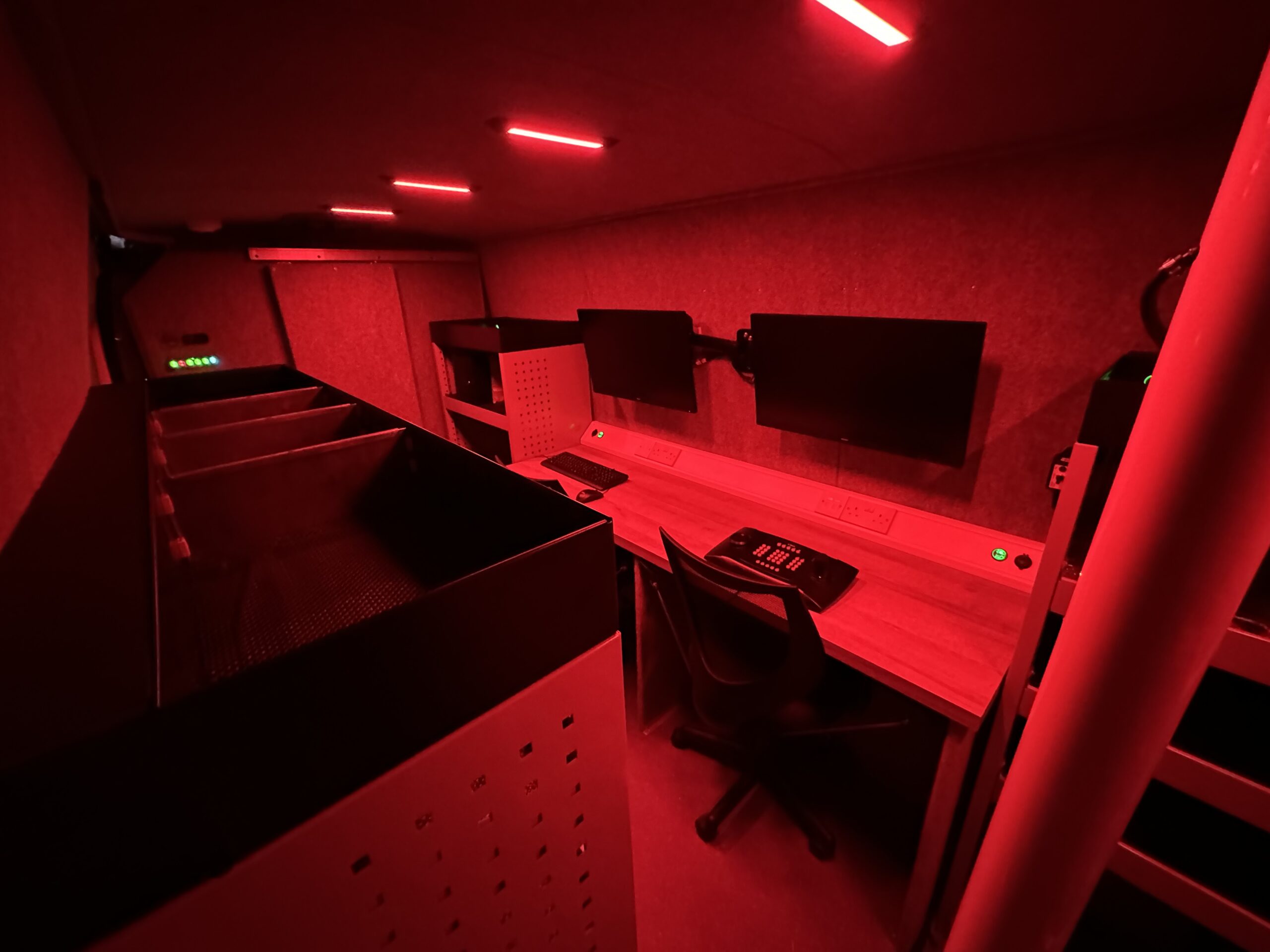

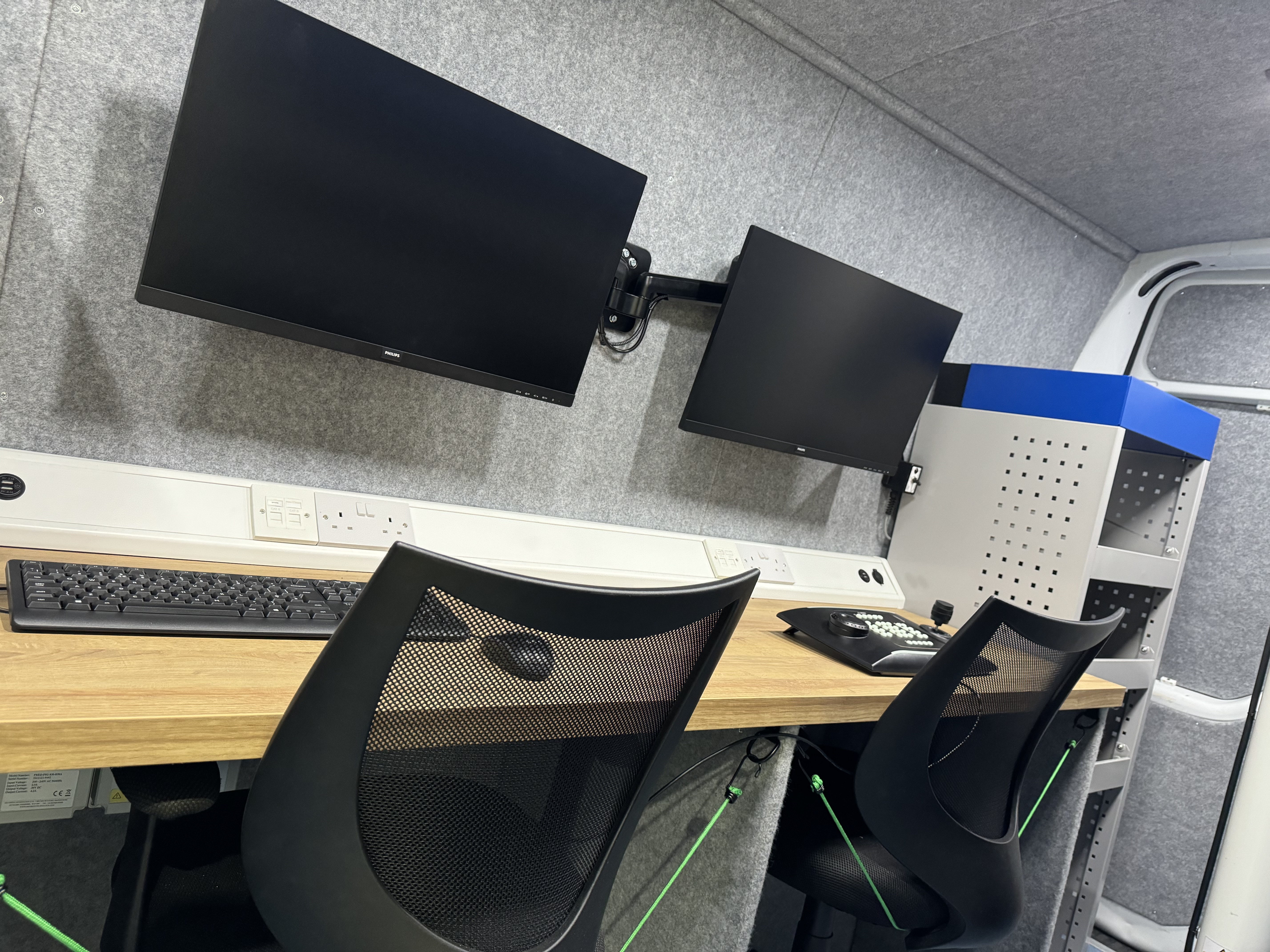

  • X2 Workstations with adjustable office chairs
  • Bulkhead with sliding door between cab and office area
  • Manual side step with warning LED
  • Single front passenger seat conversion
  • X3 Office area storage racks with bespoke PC/DVR location and securing straps
  • X2 Wall mounted moveable 27″ Philips 75hz monitors

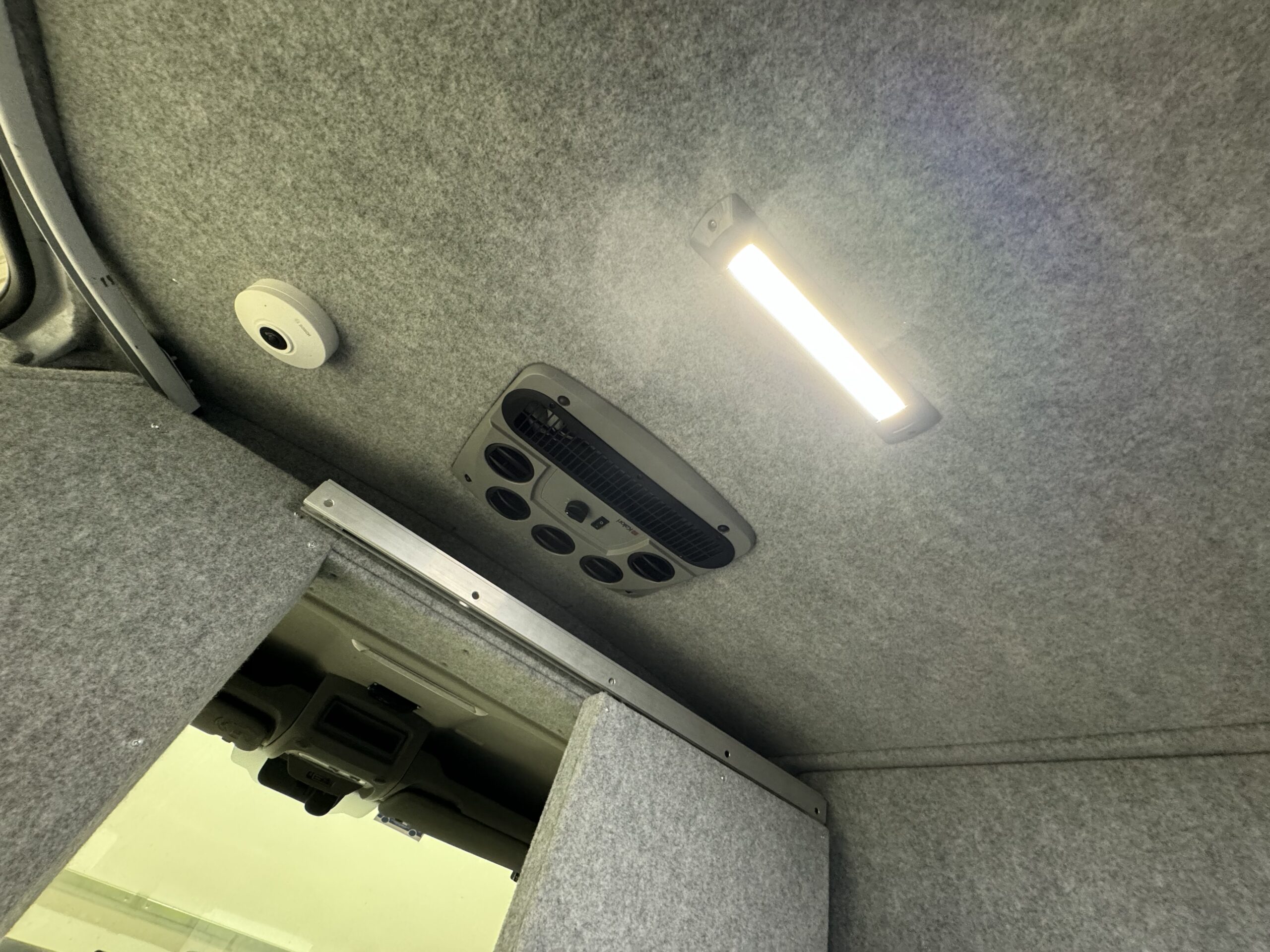

  • 12v Roof mounted auxiliary Eberspacher Air-Con system to office area
  • 12v Vehicle fed Eberspacher diesel heater with auto timer and theromstatic control – multi outlets for maximum efficiency
  • 320w Frame type solar panel with control system and monitoring

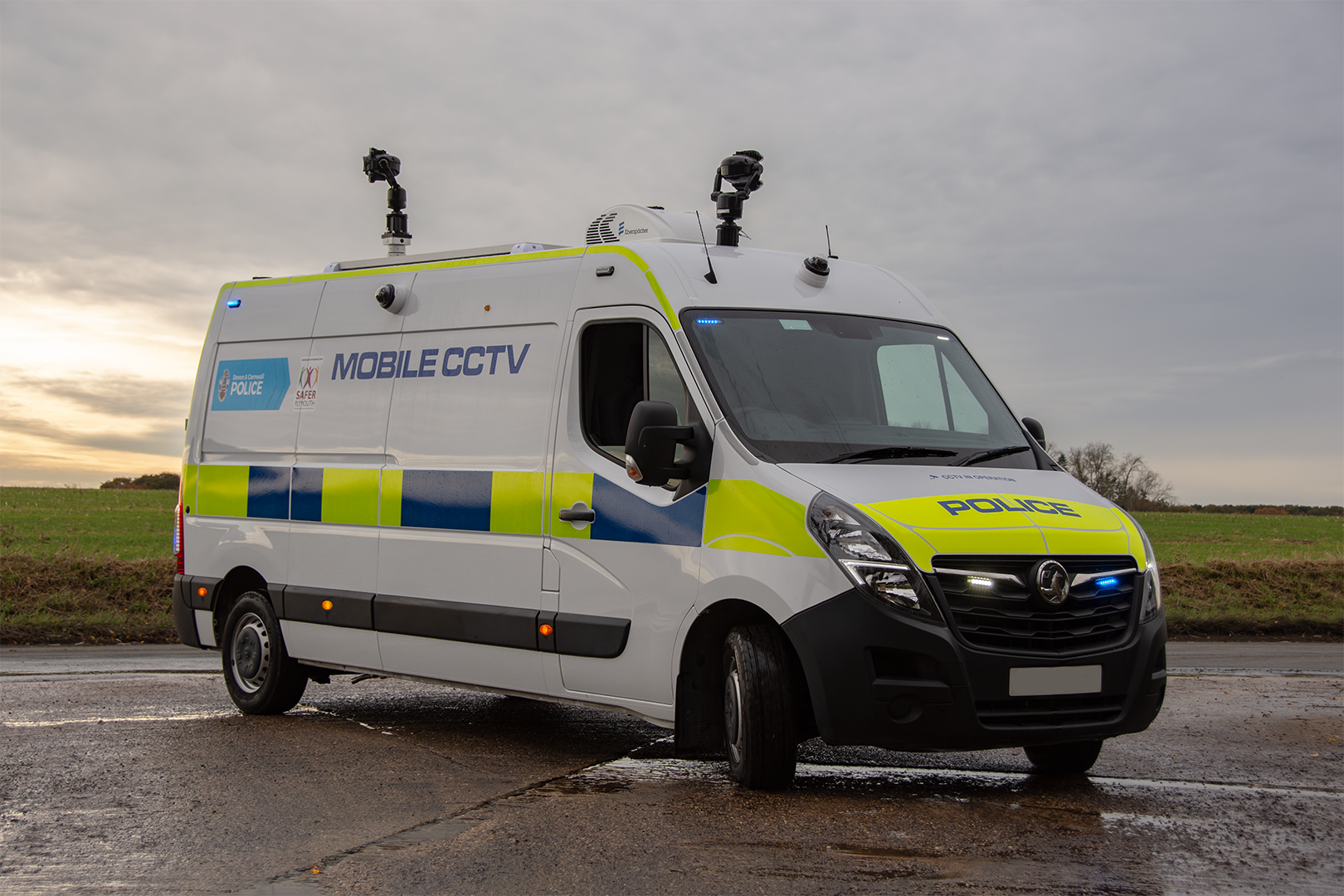

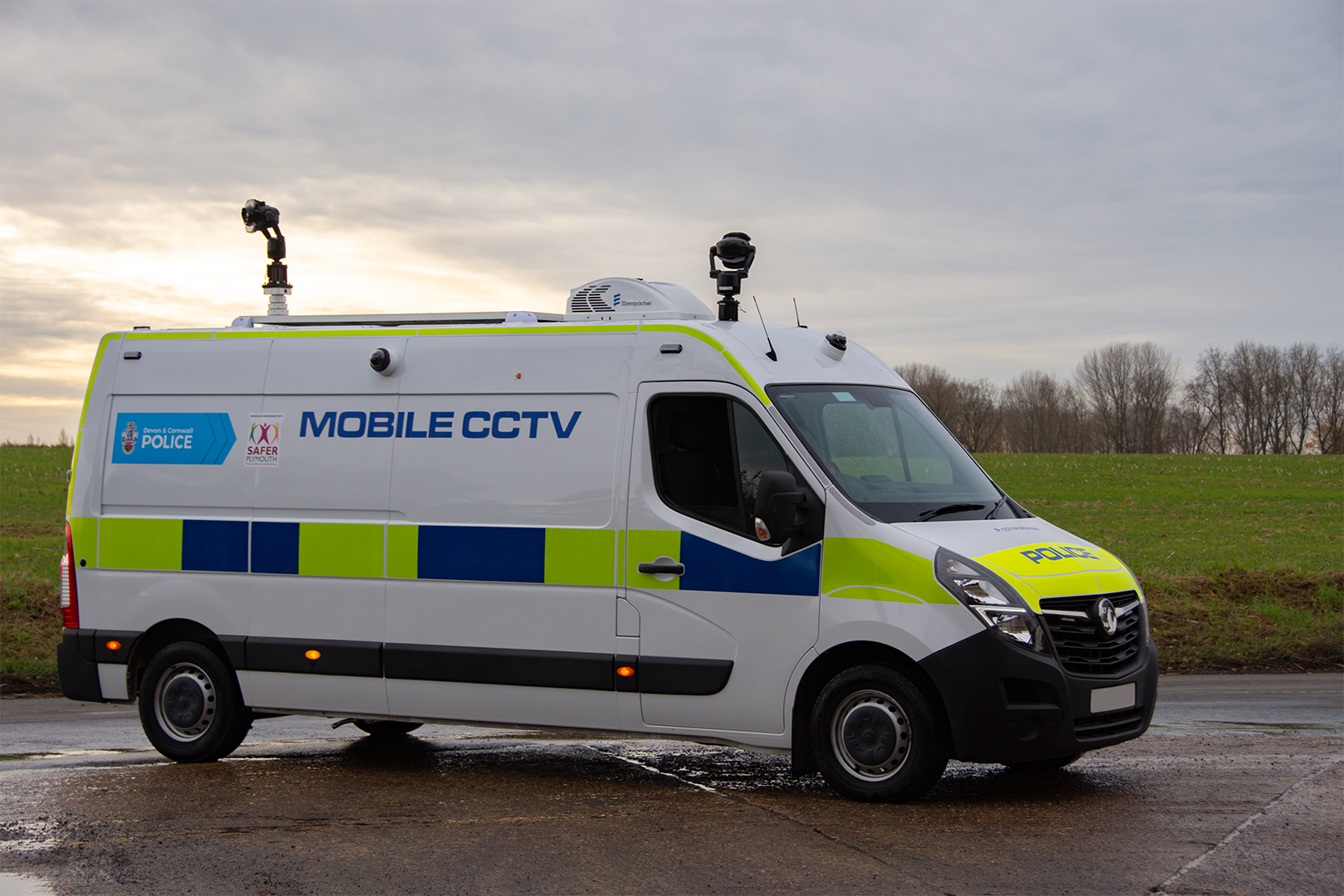

  • 6m 12v Pneumatic Clarke mast with dash mounted warning LED
  • X2 High spec Predator cameras – 1 roof mounted, 1 mast mounted
  • X4 External Bosch perimeter cameras
  • X1 Internal Bosch camera
  • X2 Bosch DIVAR computer control and data storage systems
  • X1 Bosch Joystick desk control unit
  • 240v Victron power system with 3kw inverter and multiple power socket outlets
  • Shore line charging with Kussmaul auto eject
  • 12v Power sockets in multiple locations
  • 5v USB sockets in multiple locations

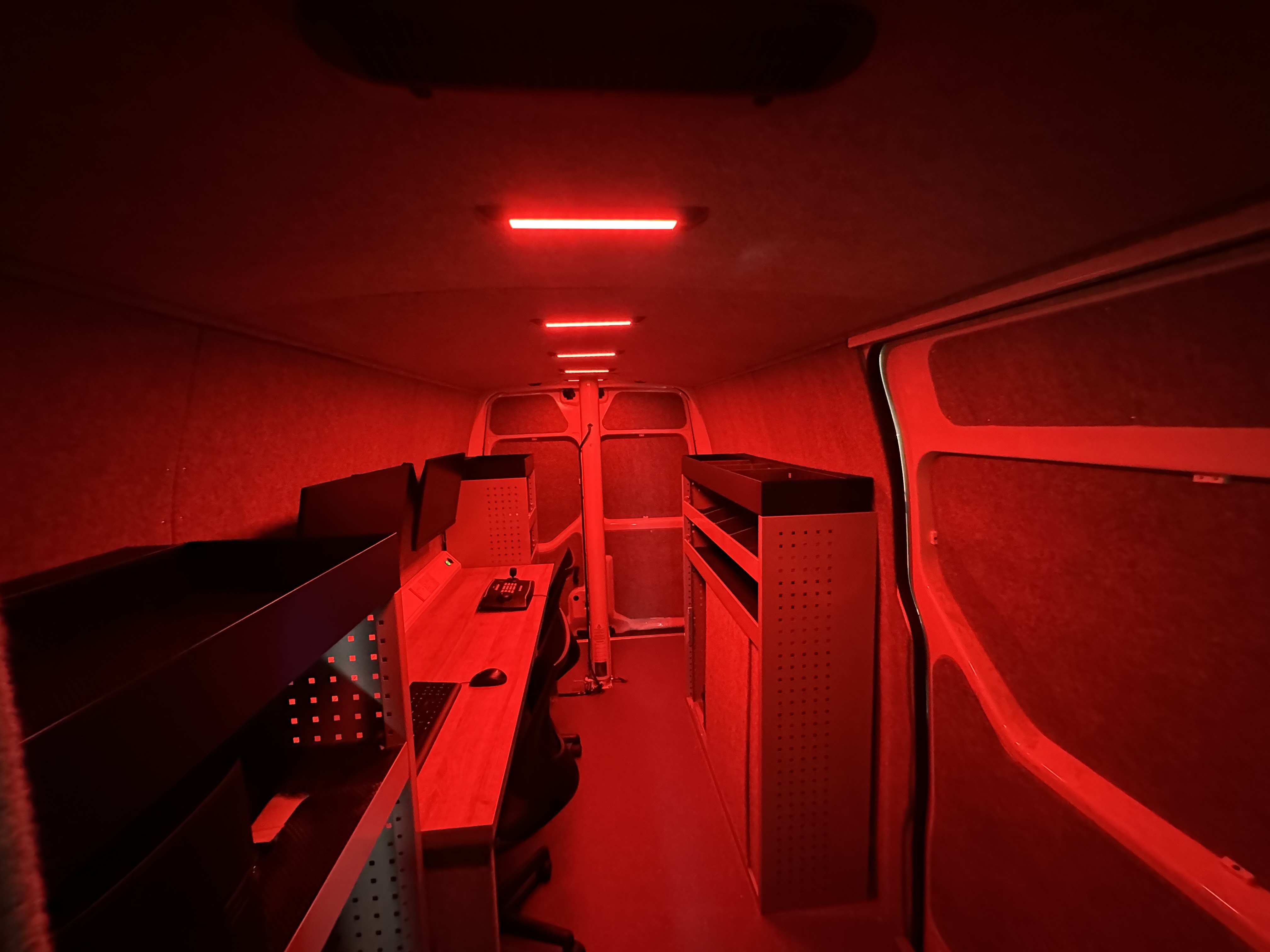

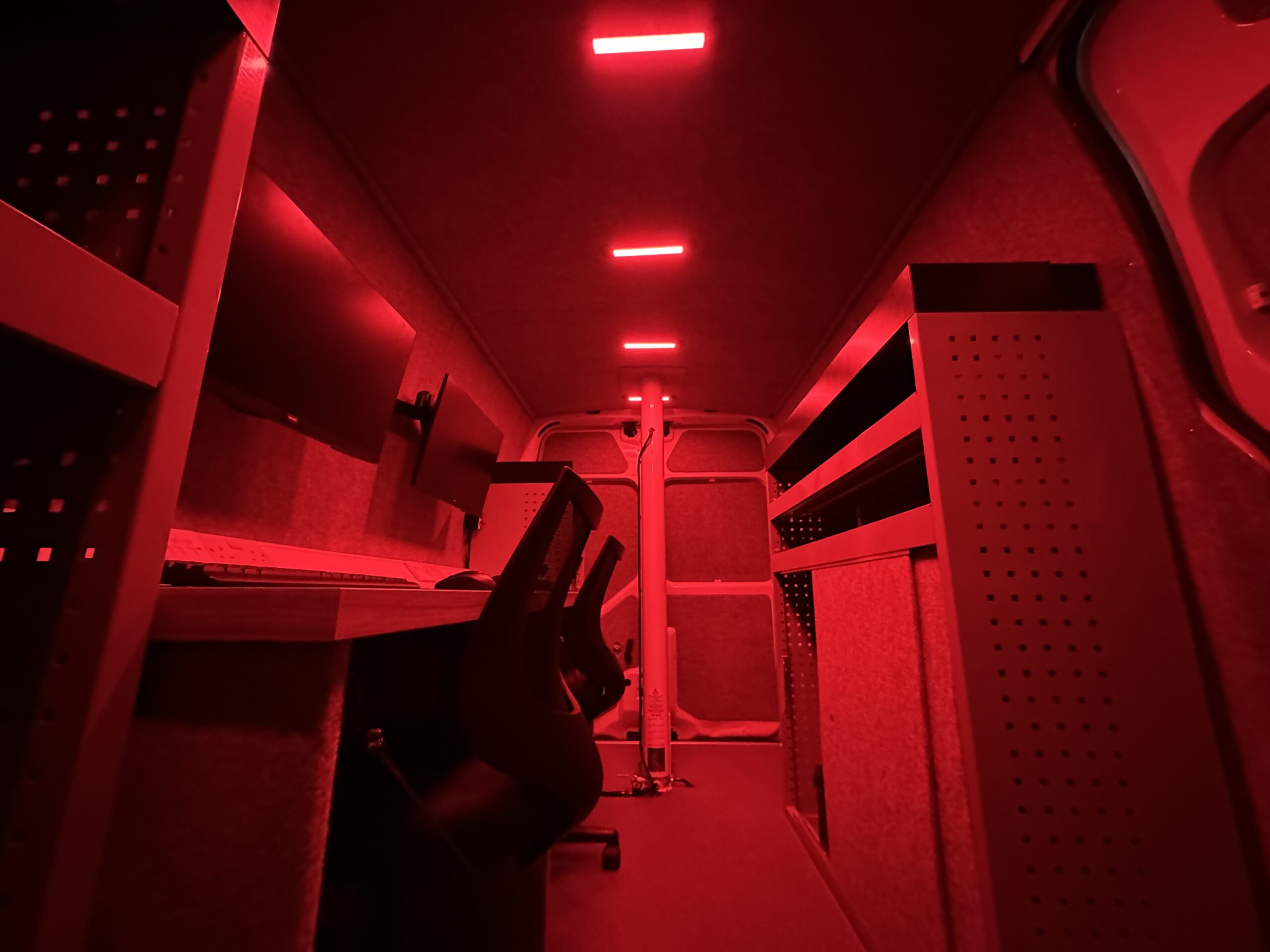

  • Internal ceiling white & red LED lighting
  • X3 300ah Lithium batteries with monitoring and control capability
  • ESV blue, white & red LED lighting
  • Siren system with integrated PA
  • Standby RSG MCS, & Intellitec Connex equipment control systems
  • External scene lighting to both sides
  • Force comms and telematics systems
  • Auxiliary power supply isolation switch

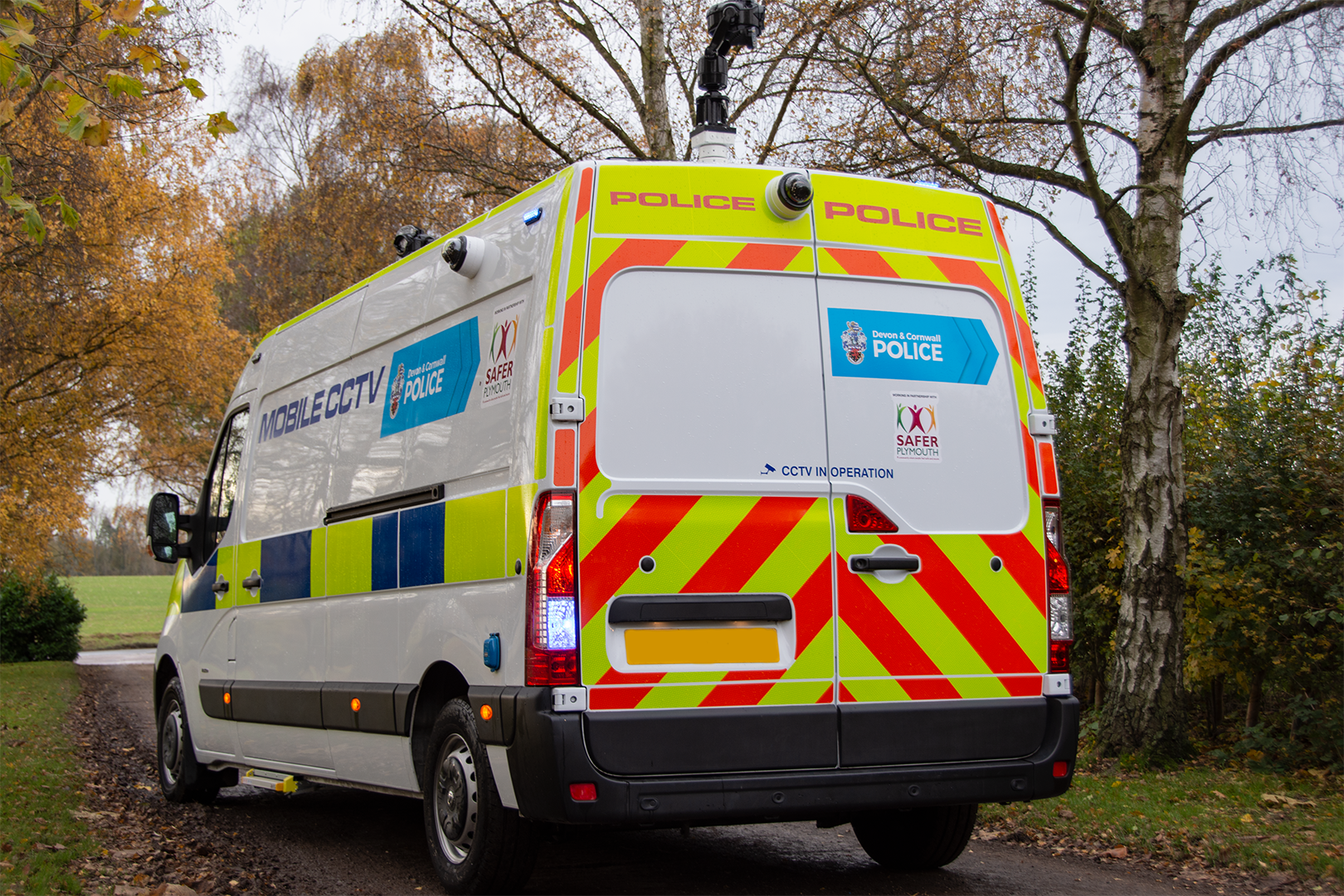

  • Battenburg Police livery and signage from PVL
